BG9

BOX GENERATION IP54

BG9_battery_charger_Zivan

PRODUCT OVERVIEW

Robust and powerful battery chargers for fast and opportunity charging. Flexible solution with reliable field-proven power modules. Applications in material handling, GSE, non-road mobile machinery, AGV/AMR and other sectors.

  • Technical Specs
  • Weight and Dimensions
Voltage Max. Current
24 V 200 A
48 V 160 A
80 V 120 A
96 V 80 A
96 V / 96 V MULTIVOLTAGE OUTPUT 80 A


Weight

< 25 Kg (55 lbs)

Dimensions

Height: 444 mm (17.48 inch)
Base: 694 mm (27.32 inch)
Width: 211 mm (8.31 inch)



APPLICATIONS

Material handling
MATERIAL HANDLING
Robotics_prodotti
ROBOTICS & AUTOMATION
TURF
TURF EQUIPMENT
emobility
E-MOBILITY
GrounSupportEquipment_Prodotti
GSE + TOW TRACTORS

BG9 Features



  • Robust and Powerful
  • High protection level up to IP54
  • Multivoltage capability for Li-Ion batteries
  • CANopen based SAE J1939 protocols
  • Intuitive Plug & play charger configuration
  • CAN Good serviceability

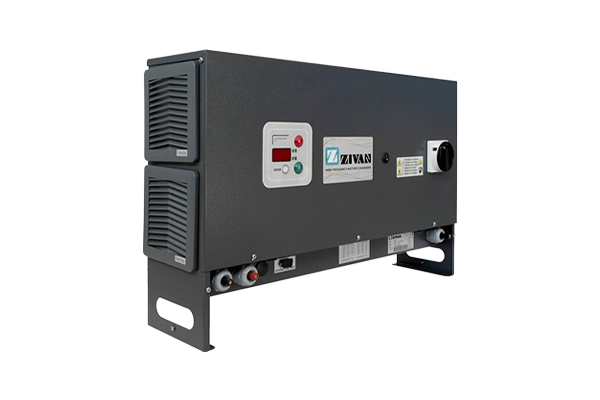

BG9_Prodotto_Sito_Zivan_2023_v1.1
