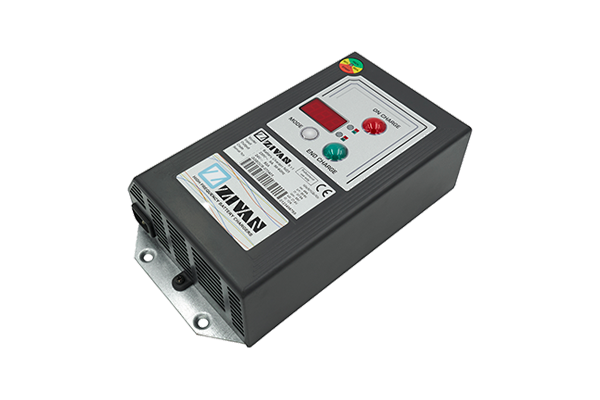

NG1

SINGLE PHASE BATTERY CHARGER

NG1_Prodotto_Sito_Zivan_2023_v1.1

PRODUCT OVERVIEW

Capable to charge several battery chemistries, including lead-acid (wet, AGM, gel) and lithium batteries. NG1 battery charger exhibits exceptional efficiency in charging solutions. Applications include aerial work platform, material handling and many others.

  • Technical Specs
  • Weight and Dimensions
Voltage Max. Current
12 V 60 A
24 V 50 A
48 V 25 A
72 V 12 A
96 V 9 A


Weight

2,2 Kg (4.8 lbs)

Dimensions

Height: 84 mm (3.3 inch)
Base: 160 mm (6.3 inch)
Width: 295 mm (11.6 inch)



APPLICATIONS

nautical_icon
MARITIME
emobility
E-MOBILITY
AWP
AERIAL WORK PLATFORM
Material handling
MATERIAL HANDLING

NG1 Features



  • Robust and Powerful
  • Modular approach with field proven power modules
  • Multivoltage capability for Li-Ion battery applications
  • All battery type (including Li-Ion)
    • over 30 years experience with charging algorithms development
  • CAN BUS Modular architecture
    • available ZIVAN  proprietary system for remote charger
      and battery monitoring
  • Plug & play charger configuration intuitive, user friendly
  • Awarded by leading OEMs in material handling, e-mobility and other sectors
