SG3_HeaderProdotto_Sito_Zivan_2023_v1.0 (1)

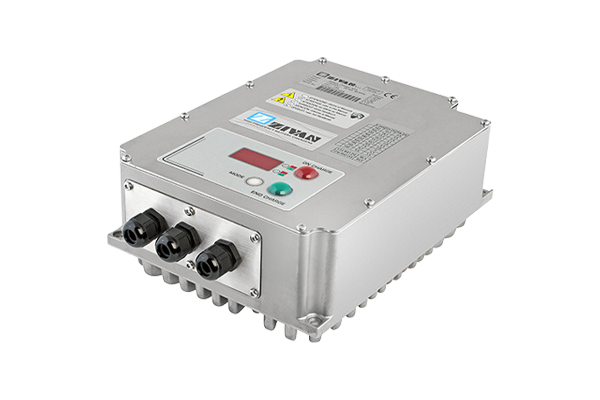

SG3 Series

ONBOARD CHARGER

SG3_Prodotto_Sito_Zivan_2023_v1.1

PRODUCT OVERVIEW

Sealed and robust 3 kW battery charger with rugged and vibration-proof design. SG3 has been awarded by leading OEMs in construction equipment, e-mobility, agriculture, aerial work platforms, outdoor power equipment, mobile robotics and other sectors

  • Technical Specs
  • Weight and Dimensions
Voltage Max. Current
24 V 80 A
36 V 80 A
48 V 60 A
72 V 42 A
96 V 30 A


Weight

< 8 Kg (17.6 lbs)

Dimensions

Height: 135 mm (5.3 inch)
Base: 220 mm (8.6 inch)
Width: 290 mm (11.4 inch)

APPLICATIONS

Construction
CONSTRUCTION EQUIPMENT
TURF
TURF EQUIPMENT
emobility
E-MOBILITY
AWP
AERIAL WORK PLATFORM
Material handling
MATERIAL HANDLING
nautical_icon
MARITIME

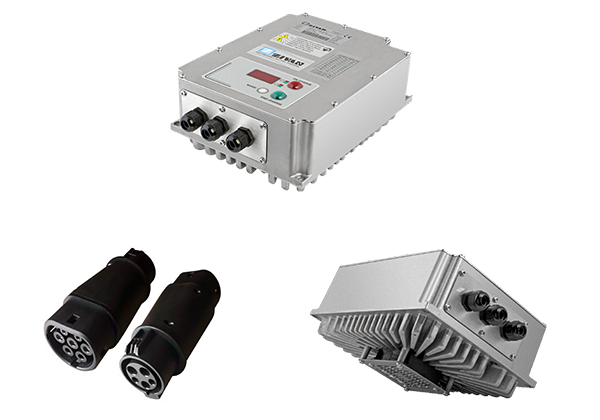

SG3 Full EVSE Series - New Features



  • Full EVSE Compatible (SAE-J1772 & EN-61851-1)
  • Lock Actuator Drive, Sensor Temperature Inlet & 6x Inlet LEDs Support
  • 1x CanBus Line with Two Nodes:
    • EVSE Controller
    • Charger
  • Reduced Quiescent to <1mA
  • Offline Monitoring & Charger Wake-Up by Plug and KSI
